$ 166.86
Sku: 041386

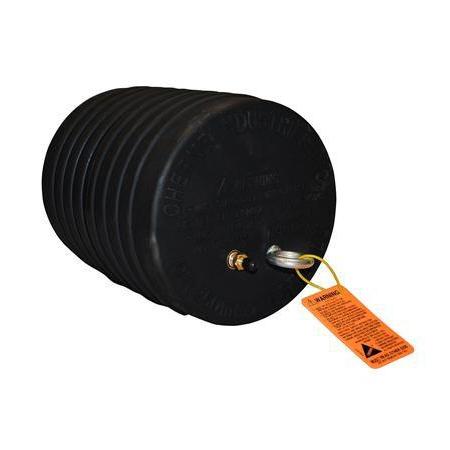

Single-Size Test-Ball Plugs (Underground)

Cherne® Single-Size Underground Test-Ball® Plugs are designed for blocking flow, allowing for maintenance in sanitary and storm sewer systems. These plugs may also be used as a back plug for sewer air tests. Cherne Industries is a global leader in pipe plugs, blocking and testing.

Features:

  • Holds 40 ft of head and back pressure to 17 PSI
  • Single-Size Underground Test-Ball® Plugs are made of natural rubber material for excellent expansion and memory
  • Seals both round and out-of-round pipe
  • Removable inflation valve can be replaced if damaged or replaced with quick disconnect fitting
  • Features an eye-bolt for use with a poly-lift line
  • Use to block flow or as a back plug for sewer air testing
  • Available in multiple sizes

Specifications:

  • Deflated Length: 10.25 in. (257 mm)
  • Maximum Back Pressure: 17 PSI / 40 ft.
  • Usage Range: 7.00 in. - 8.25 in. (178 - 210 mm)
  • Product Group Primary Sku: Yes
  • Deflated Diameter: 6.75 in. (171 mm)
  • Nominal Size: 8 in. (200 mm)
  • Brand: Cherne
  • Color: Black
  • Inflation Thread: 1/4 in. (1)
  • Inflation Pressure: 25 psi (1,7 bar)
  • Product Type: Single-Size Underground Test-Ball
  • Chain Eye Bolts: 3/8"
  • Plug Type: Blocking

    Single-Size Test-Ball Plugs (Underground)

    Cherne® Single-Size Underground Test-Ball® Plugs are designed for blocking flow, allowing for maintenance in sanitary and storm sewer systems. These plugs may also be used as a back plug for sewer air tests. Cherne Industries is a global leader in pipe plugs, blocking and testing.

    Features:

    • Holds 40 ft of head and back pressure to 17 PSI
    • Single-Size Underground Test-Ball® Plugs are made of natural rubber material for excellent expansion and memory
    • Seals both round and out-of-round pipe
    • Removable inflation valve can be replaced if damaged or replaced with quick disconnect fitting
    • Features an eye-bolt for use with a poly-lift line
    • Use to block flow or as a back plug for sewer air testing
    • Available in multiple sizes

    Specifications:

    • Deflated Length: 10.25 in. (257 mm)
    • Maximum Back Pressure: 17 PSI / 40 ft.
    • Usage Range: 7.00 in. - 8.25 in. (178 - 210 mm)
    • Product Group Primary Sku: Yes
    • Deflated Diameter: 6.75 in. (171 mm)
    • Nominal Size: 8 in. (200 mm)
    • Brand: Cherne
    • Color: Black
    • Inflation Thread: 1/4 in. (1)
    • Inflation Pressure: 25 psi (1,7 bar)
    • Product Type: Single-Size Underground Test-Ball
    • Chain Eye Bolts: 3/8"
    • Plug Type: Blocking
