Cherne ® 18" Aluminum T-Handle Gripper ® Plug (Non By-Pass)*

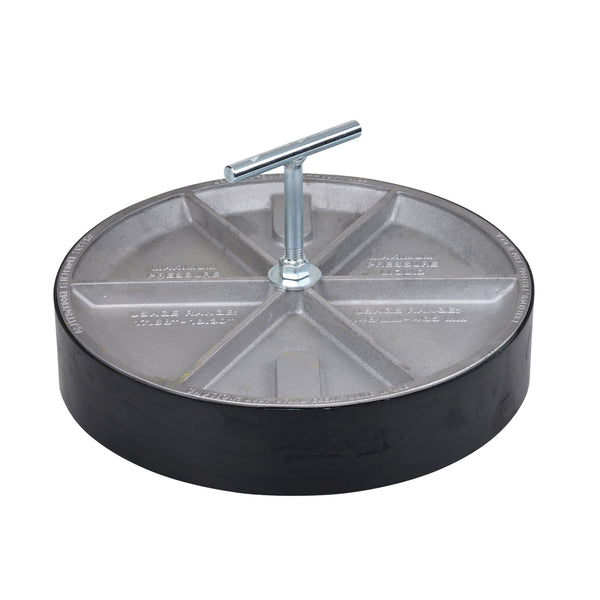

The Cherne 18" Aluminum T-Handle Gripper (part #272-888) is the largest mechanical T-Handle Gripper available — a 30 lb aluminum plug for full shutoff on 18" concrete and clay sewer pipe. Rated for 8.7 PSI / 20 ft. head pressure. Fits 18" concrete and clay pipe only (usage range 17.7"–18.3" ID). Chemical-resistant neoprene O-ring and zinc-plated steel T-handle provide reliable sealing in large-bore underground pipe.

Key Features

• Full blockage — no bypass — complete pipe shutoff for isolation and testing
• T-handle mechanical expansion — high-torque sealing for concrete, clay, and SDR pipe
• 8.7 PSI / 20 ft. head pressure — rated for sewer air pressure tests
• Chemical-resistant neoprene O-ring — handles sewer gas and chemical exposure
• Heavy-duty aluminum body — corrosion-resistant, lighter than cast iron

Technical Specifications

Applications

Full shutoff on 18" concrete and clay trunk sewer lines, complete isolation for major pipe repairs, and construction blocking. At 30 lbs, this is a two-person plug. For bypass capability, use part #272-998. For larger pipe or higher pressures, transition to the Cherne I-Series pneumatic line.
